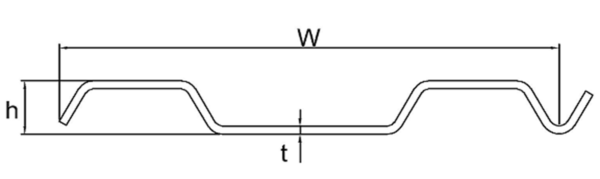

OST Trench Cold Rolled Sheet Piles
| Section | Width(w)
(mm) |
Height(h)
(mm) |
Thickness | Cross Sectional Area
(cm²/m/wall) |
Weight | Section Modulus | Moment of Inertia Wall
(cm⁴/m) |
||
|---|---|---|---|---|---|---|---|---|---|
| Flange(tf)
(mm) |
Web(tw)
(mm) |
Pile
(kg/m) |
Wall
(kg/m²) |
Elastic Wall
(cm³/m) |
|||||
| OST-1 | 600 | 78 | 6.00 | 6.00 | 80.90 | 38.10 | 63.50 | 180 | 704 |
| OST-1-2 | 600 | 78 | 6.00 | 6.00 | 81.80 | 38.50 | 64.17 | 185 | 726 |
| OST-1-3 | 650 | 78 | 6.00 | 6.00 | 79.40 | 40.50 | 62.31 | 180 | 700 |
| OST-1-4 | 550 | 78 | 6.00 | 6.00 | 79.90 | 34.80 | 63.27 | 178 | 698 |
| OST-1-5 | 500 | 78 | 6.00 | 6.00 | 84.60 | 33.20 | 66.40 | 176 | 688 |
| OST-1-6 | 742 | 92 | 6.00 | 6.00 | 69.80 | 40.70 | 54.85 | 194 | 896 |
| OST-1-7 | 400 | 50 | 6.00 | 6.00 | 70.70 | 22.20 | 55.50 | 100 | 250 |
| OST-1-8 | 400 | 48 | 4.00 | 4.00 | 47.10 | 14.80 | 37.00 | 69 | 165 |
| OST-1-9 | 300 | 37 | 3.40 | 3.40 | 48.40 | 11.40 | 38.00 | 46 | 84 |
| OST-1-10 | 330 | 37 | 4.00 | 4.00 | 51.70 | 13.40 | 40.61 | 53 | 99 |
| OST-1-11 | 400 | 37 | 3.50 | 3.50 | 43.30 | 13.60 | 34.00 | 47 | 85 |
| OST-1-12 | 400 | 37 | 4.00 | 4.00 | 49.70 | 15.60 | 39.00 | 53 | 92 |
| OST-2-1 | 600 | 80 | 8.00 | 8.00 | 108.00 | 50.90 | 84.83 | 237 | 942 |
| OST-2-2 | 742 | 94 | 8.00 | 8.00 | 93.40 | 54.40 | 73.32 | 254 | 1,200 |
| OST-2-3 | 600 | 80 | 8.00 | 8.00 | 108.40 | 51.50 | 85.83 | 241 | 970 |
| OST-2-4 | 742 | 93 | 7.00 | 7.00 | 81.50 | 47.50 | 64.02 | 225 | 1,045 |
| OST-2-5 | 650 | 80 | 8.00 | 8.00 | 105.70 | 54.00 | 83.08 | 236 | 993 |
| OST-2-6 | 600 | 79 | 7.00 | 7.00 | 94.50 | 44.50 | 74.17 | 208 | 821 |
| OST-2-7 | 600 | 81 | 9.00 | 9.00 | 121.30 | 57.20 | 95.33 | 262 | 1,058 |
| OST-2-8 | 880 | 152 | 4.00 | 4.00 | 59.60 | 41.20 | 46.82 | 251 | 1,897 |
| OST-3-1 | 880 | 154 | 6.00 | 6.00 | 89.60 | 61.90 | 70.34 | 372 | 2,848 |
| OST-3-2 | 880 | 156 | 8.00 | 8.00 | 122.40 | 84.60 | 96.14 | 500 | 3,880 |
OST Trench Sheets are a fast-effective solution for rapid trenching. ESC’s trench pile line is highly suitable for shallow excavation in soft or loose soil. The thin design and composition of this pile allows for multiple instances of re-use and its simple overlap interlocking system makes it easy and quick to use.
