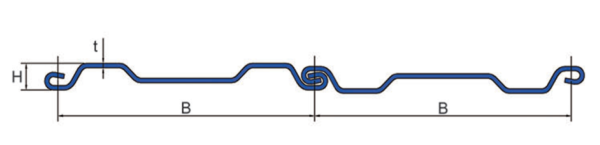

COLD ROLLED FLAT WEB SHEET PILES
| Section | Width(w)
(mm) |
Height(h)
(mm) |
Thickness | Cross Sectional Area
(cm²/m/wall) |
Weight | Section Modulus | Moment of Inertia Wall
(cm⁴/m) |
||
|---|---|---|---|---|---|---|---|---|---|
| Flange(tf)
(mm) |
Web(tw)
(mm) |
Pile
(kg/m) |
Wall
(kg/m²) |
Elastic (cm³/m) |
|||||
| OSF-CR1 | 500 | 69.50 | 9.50 | 9.50 | 146.20 | 57.40 | 114.80 | 82 | 283 |
| OSF-CR2 | 501 | 71.00 | 11.00 | 11.00 | 168.20 | 66.00 | 131.74 | 91 | 321 |
| OSF-CR3 | 502 | 72.00 | 12.00 | 12.00 | 186.50 | 73.20 | 145.82 | 102 | 365 |
| OSF-CR4 | 503 | 72.50 | 12.50 | 12.50 | 194.40 | 76.30 | 151.69 | 106 | 382 |
| OSF-CR5 | 504 | 72.70 | 12.70 | 12.70 | 196.40 | 77.10 | 152.98 | 108 | 390 |
| OSF-CR6 | 505 | 73.00 | 13.00 | 13.00 | 202.80 | 79.60 | 157.62 | 111 | 401 |
